Engine Displacement (cc)
| 124 / 199 / 249 / 297 | | Type | Two-stroke, single cylinder with case-reed induction | Bore x Stroke (mm)
| 54 x 54.5 / 62.5 x 65 / 66 x 72 / 72 x 72 | | Ignition | Kokusan CDI (heavy), 2 position switchable | Fuel System
| Keihin PWK 38 mm | | Clutch | Hydraulic multidisc | | Gearbox | 6 speed | | Starting | Kickstart
| | | | | Frame | Deltabox built with Chromoly “B” tubing | Front Suspension
| 45 mm Marzocchi, 295 mm / 11.6 in travel
| Rear Suspension
| Progressive, Ohlins shock absorber, 310 mm / 12.2 in. travel | Front Brake
| 260 mm. disc, double-piston caliper, Galfer wave rotor | Rear Brake
| 220 mm. disc, single-piston caliper, Galfer wave rotor
| Front Tire
| 90 x 90 - 21" Metzler | Rear Tire
| 140 x 80 - 18" Metzler | | | | Special Features

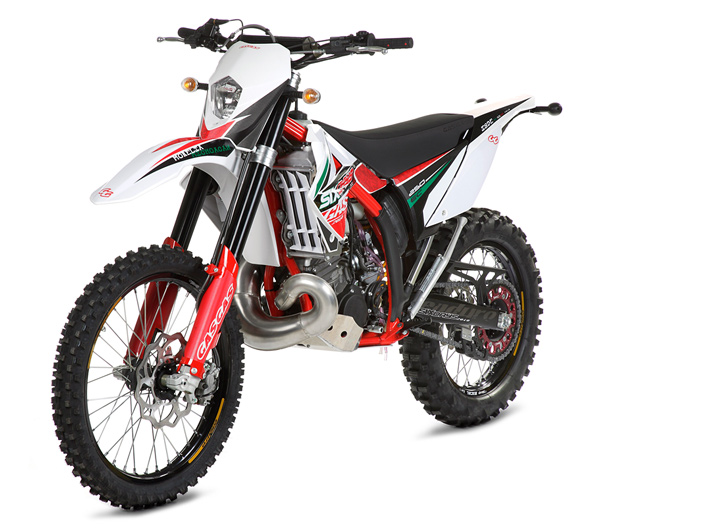

| Six Days Mexico graphics, Renthal TwinWall handlebars, radiator braces, aluminum skid plate, rear brake master cylinder cooler, Supersprox rear sprocket, stainless steel expansion chamber NOTE: Turn indicators and taillight are not US spec
|
|
| Wheelbase (mm/in)
| 1460 / 57.5 (125 and 200), 1476 / 58.1 (250 and 300) | Seat Height (mm/in)
| 945 / 37.2 | Minimum Ground Clearance (mm/in)
| 366 / 14.4 | Fuel Capacity (l/gal)
| 9.5 / 2.47 | Weight (kg/lbs)
| 94 / 207.8 (125), 95 / 209 (200), 101 / 222.2 (250), 102 / 224.4 (300) |
|
 |
